No. 002 · Barcelona, ES

The Corner Is Yours

Drag the line: our clay model on the left, the AI concept on the right. The geometry does not change.

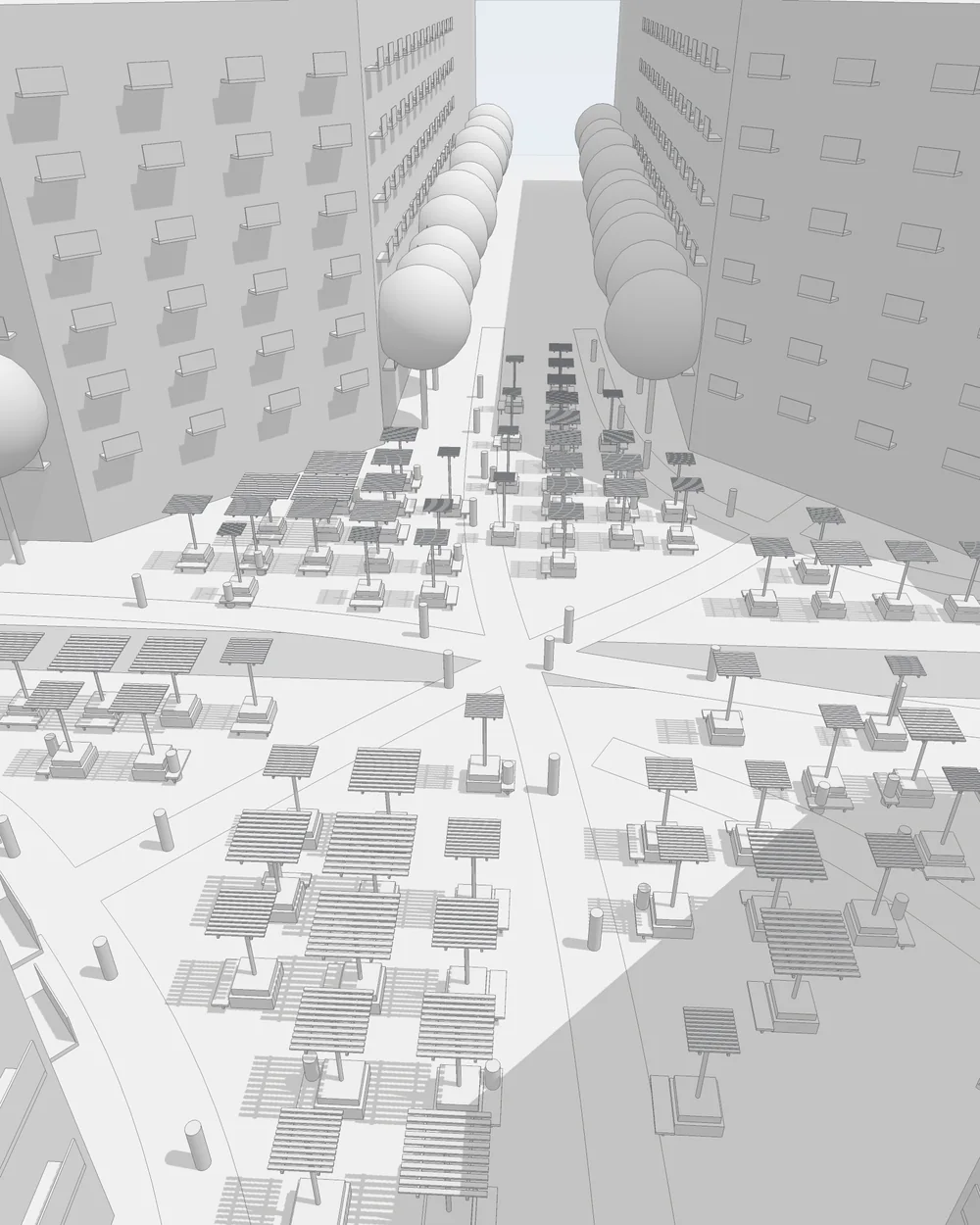

Grey clay model of the junction with square canopies between its paths, seen from a low drone. The same junction as an AI-assisted concept image: pale paths cross it with no furniture on them, and square timber canopies on single posts gather in the corners between the paths.
clay · our script AI concept
BARCELONA, ES · SUPERBLOCK JUNCTION41.39° N 2.16° E

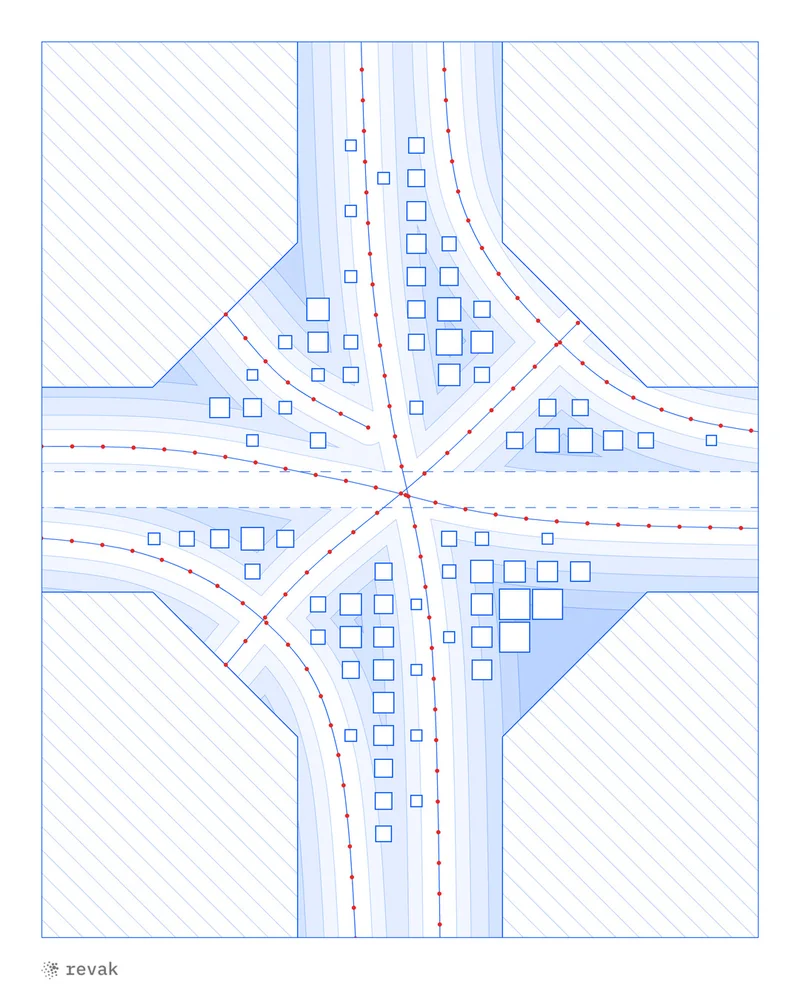

When a Barcelona superblock takes the cars out of an intersection, a whole corner suddenly belongs to people. But where should the benches go? We let people answer first. The shortcuts walkers already take across the junction become repelling attractor points: the paths stay open, and benches, planters and shade canopies settle into the dead corners between them. A 3.5 m lane stays clear for emergency vehicles, and every planter can be moved.

145repelling points
80modules
3.5 mclear lane
# No. 002 · Barcelona, ES canopy.size = f(distance, reach) # 80 modules · 145 repelling points · 1 definition

Concept and AI-assisted visualisation, not a built project. Geometry from our own parametric script.

No. 002 · Barcelona, ES

Every image from the post

The rule behind it

One idea, three parameters

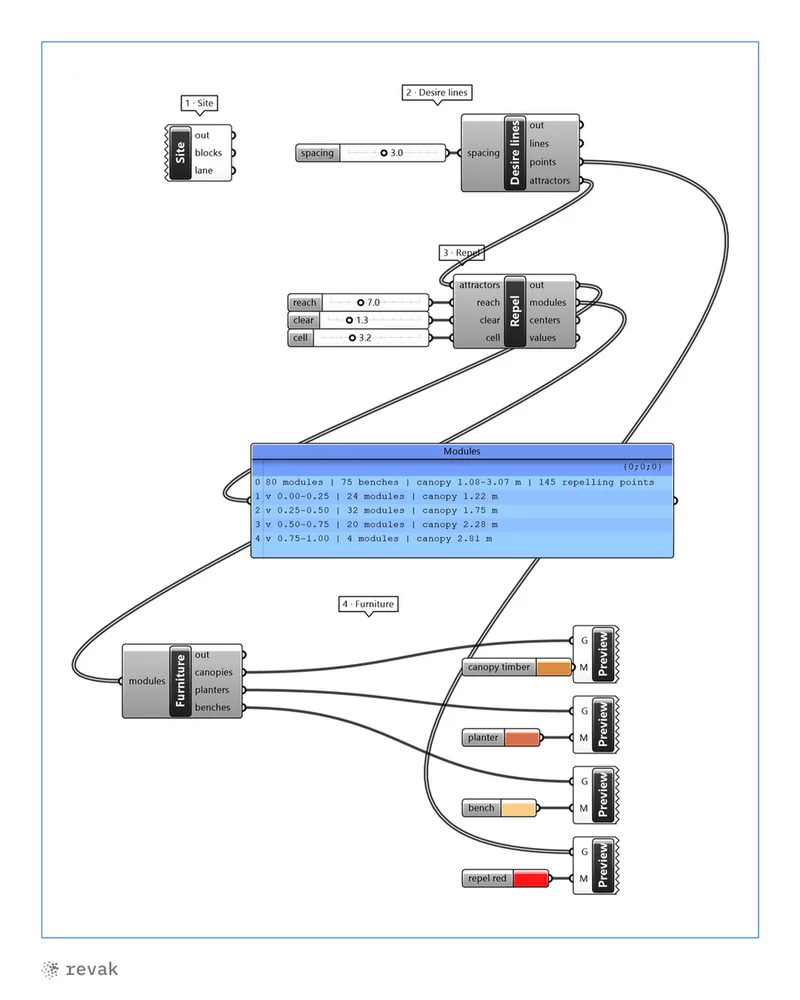

One Grasshopper definition per post. If we can't say the rule in one sentence, it isn't ready.

With every post

Free mini scripts

A small, working version of each entry's rule. Change three sliders, get your own design.

  • one .gh file per rule
  • sliders for the three parameters
  • by DM from Instagram
